Private Subnets for Enterprise¶

XDC Private Subnets enable enterprises to deploy dedicated, application-specific blockchains while maintaining interoperability with the XDC mainnet.

Overview¶

Private Subnets are sovereign blockchain networks that:

Run independently with customizable consensus parameters
Connect to XDC mainnet for cross-chain communication
Maintain privacy for sensitive enterprise data
Scale horizontally for specific use cases

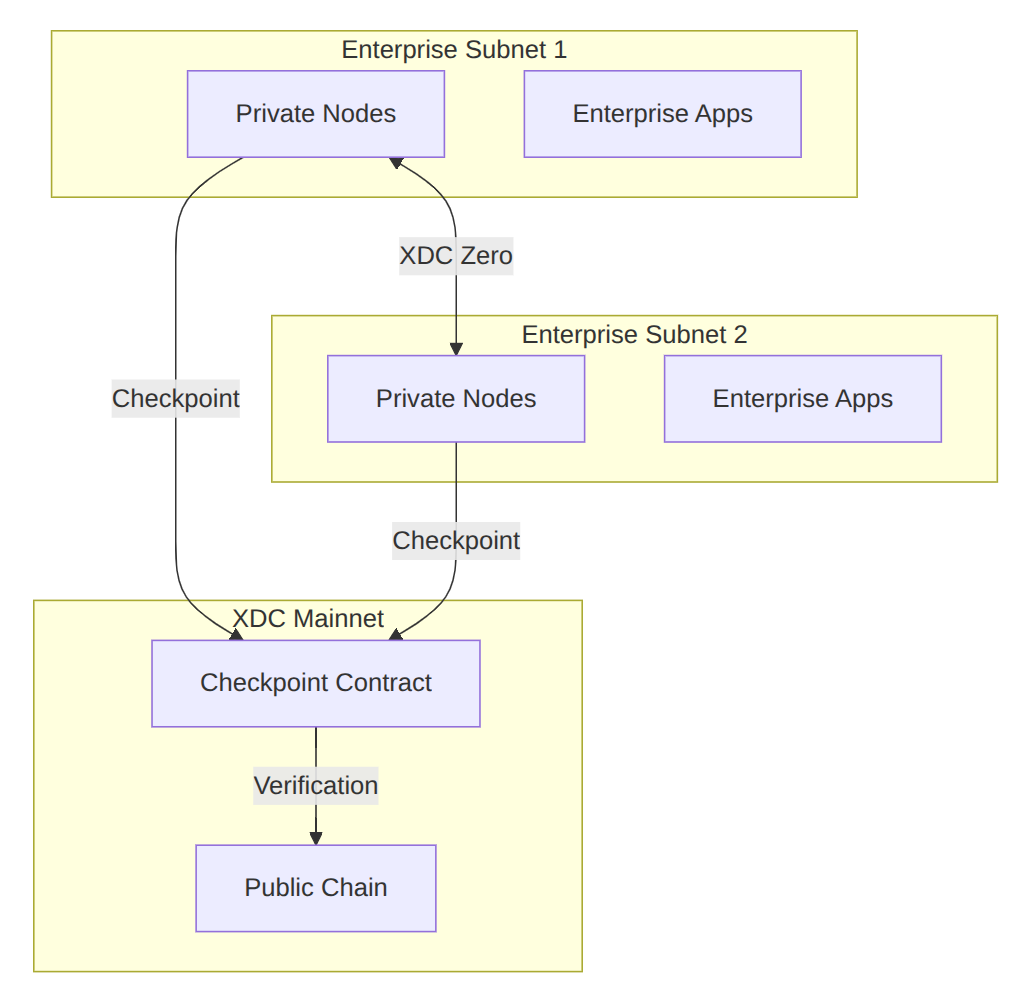

Architecture¶

flowchart TB
    subgraph "XDC Mainnet"
        A[Public Chain]
        B[Checkpoint Contract]
    end

    subgraph "Enterprise Subnet 1"
        C[Private Nodes]
        D[Enterprise Apps]
    end

    subgraph "Enterprise Subnet 2"
        E[Private Nodes]
        F[Enterprise Apps]
    end

    C -->|Checkpoint| B
    E -->|Checkpoint| B
    B -->|Verification| A

    C <-->|XDC Zero| E

Key Features¶

Feature	Description
Sovereign Consensus	Customize block time, validator set, and consensus rules
Data Privacy	Transaction data stays on your private network
Mainnet Anchoring	Periodic checkpoints to XDC mainnet for security
Cross-Chain Bridge	Transfer assets between subnet and mainnet
Permissioned Access	Control who can participate in the network

Use Cases¶

Regulated Financial Services¶

Deploy a private subnet for banking operations where data privacy and regulatory compliance are paramount.

Supply Chain Consortiums¶

Create a shared private network for supply chain partners with controlled access.

Healthcare Data¶

Manage sensitive patient data with HIPAA-compliant private infrastructure.

Government Applications¶

Deploy government services with full data sovereignty.

Deployment Options¶

Option 1: Fully Private¶

All nodes operated by your organization
Complete data isolation
No external connectivity

Option 2: Consortium¶

Multiple organizations operate nodes
Shared governance
Permissioned participation

Option 3: Hybrid¶

Private execution layer
Public verification via mainnet
Selective data disclosure

Quick Start¶

Prerequisites¶

Docker and Docker Compose
Minimum 3 nodes for production
XDC for mainnet checkpointing fees

Deploy a Subnet¶

# Clone the subnet deployment tools
git clone https://github.com/XinFinOrg/XDC-Subnet.git
cd XDC-Subnet

# Configure your subnet
cp .env.example .env
nano .env

# Set your configuration
SUBNET_NAME=my-enterprise-subnet
BLOCK_TIME=2
VALIDATORS=3
CHECKPOINT_INTERVAL=900

Configuration File¶

# subnet-config.yaml
subnet:
  name: "Enterprise Subnet"
  chainId: 551 # Unique chain ID

consensus:
  type: "XDPoS"
  blockTime: 2
  epochLength: 900

validators:
  count: 3
  minStake: 10000000 # 10M XDC equivalent

checkpoint:
  enabled: true
  mainnetRPC: "https://rpc.xinfin.network"
  interval: 900 # blocks

network:
  p2pPort: 30303
  rpcPort: 8545
  wsPort: 8546

Start the Network¶

# Initialize genesis
./scripts/init-genesis.sh

# Start validator nodes
docker-compose up -d

# Verify network
curl -X POST http://localhost:8545 \
  -H "Content-Type: application/json" \
  -d '{"jsonrpc":"2.0","method":"eth_blockNumber","params":[],"id":1}'

Checkpointing to Mainnet¶

Subnets periodically anchor their state to XDC mainnet for security:

// Checkpoint contract on mainnet
interface ICheckpoint {
    function submitCheckpoint(
        uint256 subnetChainId,
        uint256 blockNumber,
        bytes32 blockHash,
        bytes32 stateRoot,
        bytes calldata validatorSignatures
    ) external;

    function verifyCheckpoint(
        uint256 subnetChainId,
        uint256 blockNumber
    ) external view returns (bool);
}

Cross-Chain Communication¶

XDC Zero Bridge¶

Transfer assets between your subnet and mainnet:

const { XDCZero } = require('@xdc/zero-sdk');

const bridge = new XDCZero({
    mainnetRPC: 'https://rpc.xinfin.network',
    subnetRPC: 'https://your-subnet-rpc.com',
    bridgeContract: '0x...'
});

// Lock tokens on mainnet, mint on subnet
await bridge.deposit({
    token: '0x...', // Token address
    amount: '1000000000000000000', // 1 token
    recipient: '0x...', // Recipient on subnet
});

// Burn on subnet, release on mainnet
await bridge.withdraw({
    token: '0x...',
    amount: '1000000000000000000',
    recipient: '0x...',
});

Security Considerations¶

Node Security¶

Run nodes in secure, isolated environments
Implement proper key management
Regular security audits

Network Security¶

Firewall rules for P2P ports
TLS for RPC endpoints
VPN for inter-node communication

Validator Management¶

Multi-sig for validator changes
Regular key rotation
Monitoring and alerting

Pricing¶

Component	Cost
Subnet deployment	Contact sales
Mainnet checkpointing	~0.1 XDC per checkpoint
Cross-chain transfers	~0.01 XDC per transfer
Support & maintenance	Custom pricing

Support¶

For enterprise subnet deployment:

Email: enterprise@xdc.org
Documentation: Subnet Docs
GitHub: XDC-Subnet
